// Excavators / JCB / 7C
Track bolt for JCB 7C Excavators
Store_Code
25380
VANROCK_PART_CODES
VRTD0410A15
Weight
0.13 Kg
Availability
Available to order
Details
TypeSTD
Hardened head—
Strength class12,9
A5/8'
Pitch18 UNF
B16 mm
C54 mm
D27 mm
E15 mm
CH24 mm
G23 mm

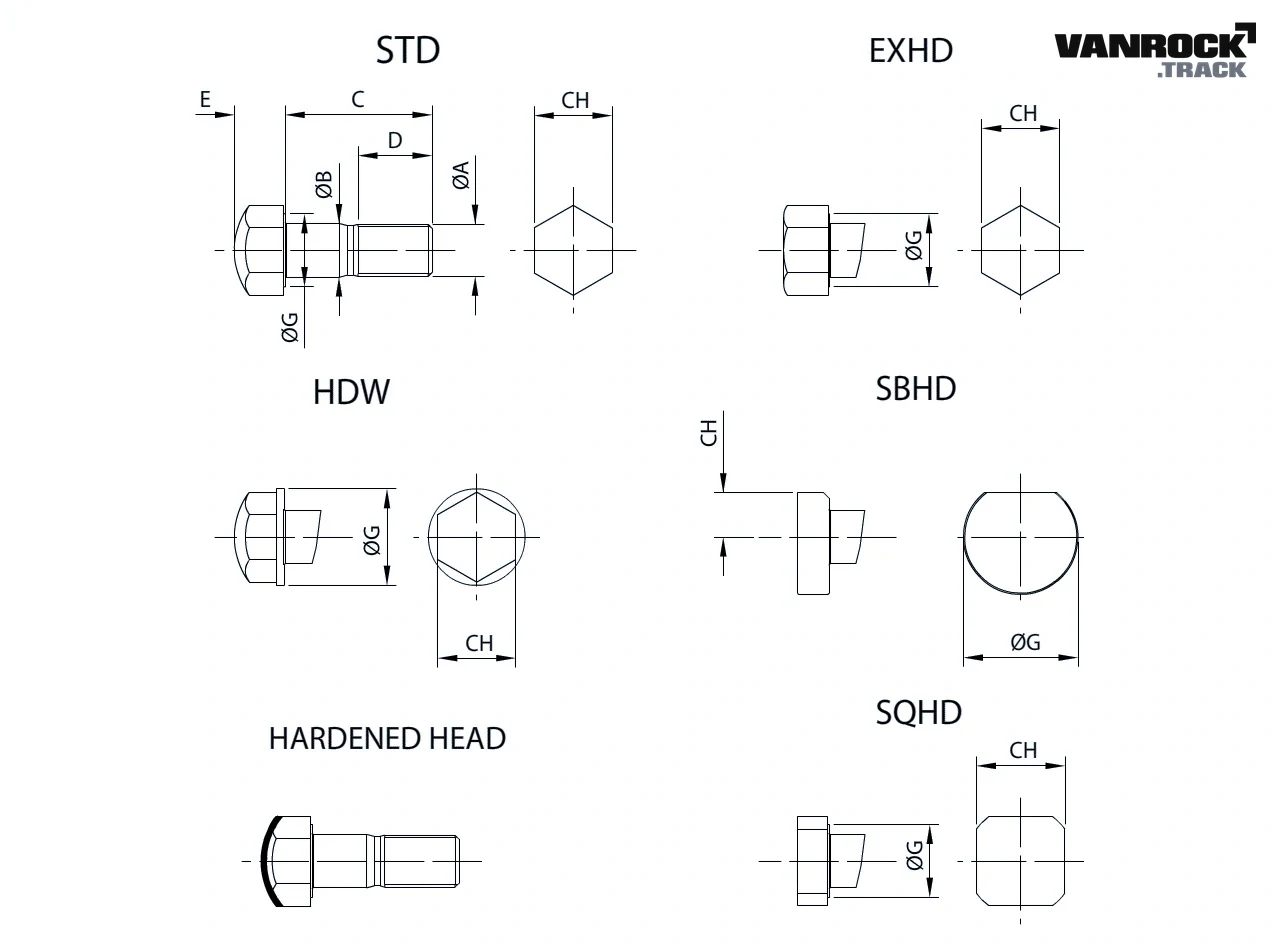

Technical_Drawing
Compatible_With
CATERPILLAR
215B v2215BSA v1215DLC215SA225 v1225 v3225B v1225LC v2561B561C v1561C v2561C v3561D941 v1941B v1941B v2941B v3943 v1943 v2943 v3943 LGP951B v1951B v2951B v3951B v4951B v5951C v1951C v2951C v3951C v4951C v5951C v6953 v1953 v2953 LGP v1953 LGP v2953 LGP v3953 LGP v4953C v1955C v2955H v1955H v2955H v3955K v1955K v2955K v3955K v4955K v5955K v6955L v9D4D v5D4D v9D4D v17D4D v18D4D LGP v3D4D LGP v5D4D SA v2D4D SA v3D4D SA v4D4E v1D4E v2D4E v3D4E v4D4E v5D4E v6D4E v7D4E v8D4E v10D4E v11D4E v13D4E LGP v1D4E LGP v2D4E LGP v3D4E LGP v4D4E SA v1D4E SA v2D5 v1D5 v2D5 v3D5 v4D5 v5D5 v6D5 v7D5 v8D5 v9D5 v10D5 v11D5 v12D5 v13D5 v14D5 v15D5 v16D5 v17D5 v18D5 v19D5 LGP v1D5 LGP v2D5 LGP v3D5 LGP v4D5 SAD5B v1D5B v2D5B v3D5B v4D5B v5D5B v6D5B v7D5B v8D5B v9D5B v10D5B v11D5B LGPD5B SA v1D5B SA v2D5ED6 v1D6 v2D6 v3D6 v4D6B v1D6B v2D6B v3
CNH-FIAT NEW HOLLAND
100C v1100C v210B v110B v210C v110C-LGP v110C-TA120C1355C160-553951670C v170C v270C v370C v470CA70CI v170CI v270CI v37C7C-27D7DP880C80CA v180CA v28B8B-LGP8B-TA9-01/02 v29-01/02 v190CAD10AD10B v1AD10B v2AD10CAD7 v1AD7 v2AD7CAD9AT7BD10BD10B v1BD10B v2BD10CBD7CBD9D95BFA100FA120FD9FL10FL10BFL10CFL7FL8 v1FL8 v2FL8CFL9P7ST8
LIEBHERR
HS830HS841HS842HS842 LITRONICLR611LR611MLR621LR621BLR621BMLR622BMR941PR711PR711CPR711CMPR711MPR712PR712 LITRONICPR712BPR712BLPR712BMPR712L LITRONICPR712M LITRONICPR721C v1PR721C v2PR721CM v1PR721CM v2PR722 BLPR722 LITRONICPR722L LITRONICPR722M LITRONICPR731PR731LR912HD v1R912HD v2R912HDSR921BHD v1R921BHD v2R921CHDR921HDR922HDR922HDSR925 v2R925BR932HDSLR941 v1R941 v2R941BLCR941LCR942R942LCR945 v1
Cross_Reference
A.B.G.21076286
BENATI2001074
BERCOCR1251
BERCOCR1251A
C.M.W-(CHARLES-MACHINES)107-365
CASE295318A1
CATERPILLAR5H8756
CATERPILLAR5W9827
CATERPILLAR7H3597
CNH-FIAT NEW HOLLAND4982171
CNH-FIAT NEW HOLLAND79004489
CNH-FIAT NEW HOLLAND79031606
DRESSER1254380H1
DRESSER-FURUKAWA319325231R1
DRESSER-FURUKAWA3193523R1
E.W.K.501518501
EXTECVCR1251
GAMBETTI-BARREM175903001
HANOMAG2979124M
HYUNDAI81EL-25020
INGERSOLL RAND56965262
INGERSOLL RAND57407405
INGERSOLL RAND57700866
ITMD04100A0N15
JCBJNA0295
JCBJNA0362
JOHN DEERECQ09337
JOHN DEERET121478
JOHN DEERET43323
JOHN DEERET45096
JOHN DEERE-CAMECOCB01419009
LANDINI MASSEY FERGUSON1430746M1
LANDINI MASSEY FERGUSON2928705M1
LANDINI MASSEY FERGUSON2979121M1
LANDINI MASSEY FERGUSON2979124M1
LANDINI MASSEY FERGUSON2979939M1
LANDINI MASSEY FERGUSON3089873M1
LANDINI MASSEY FERGUSON4906550M1
LIEBHERR4091100
LIEBHERR4097515
LIEBHERR4157879
LIEBHERR4253410
LIEBHERR4982171
LIEBHERR7001485
MAIT2175046
MAIT2901221
POCLAIN-CASE POCLAINW0033071
REEDRILLV005766
SENNEBOGEN013343
SIMIT45482377
TELCO-TATA9TD01119/03
TELCO-TATA9TD01583/2
TELCO-TATATD01119/03
TELCO-TATATD01583/2
VARIOUS571008
VERMEER118120001
VOLVO14016545
VOLVO16545
VOLVO18065840
VPIV7H3597
