Rubber Pads

bolt-on pads · chain-on pads · clip-on pads · road pads

Rubber pads let a steel-tracked machine work on asphalt, concrete and finished surfaces without damage. Each VANROCK rubber pad is individually vulcanised onto a metal core and is matched to the chain by its link pitch.

Four mounting systems cover every configuration: bolt-on pads screwed through the track shoe, chain-on pads mounted directly on the chain (standard and HD VGRIP), clip-on pads clamped around the fitted shoe, and road pads in rubber or polyurethane. Bolt-on and chain-on pads are supplied with bolts and nuts.

62 pad references across 5 mounting systems — request a quote with your VANROCK code.

MOUNTING_SYSTEMS

Bolt-on rubber pads

Screwed onto the track shoes through additional holes in the shoe. VANROCK supplies track shoes pre-drilled for bolt-on pads as a complete solution.

Supplied with bolts and nuts

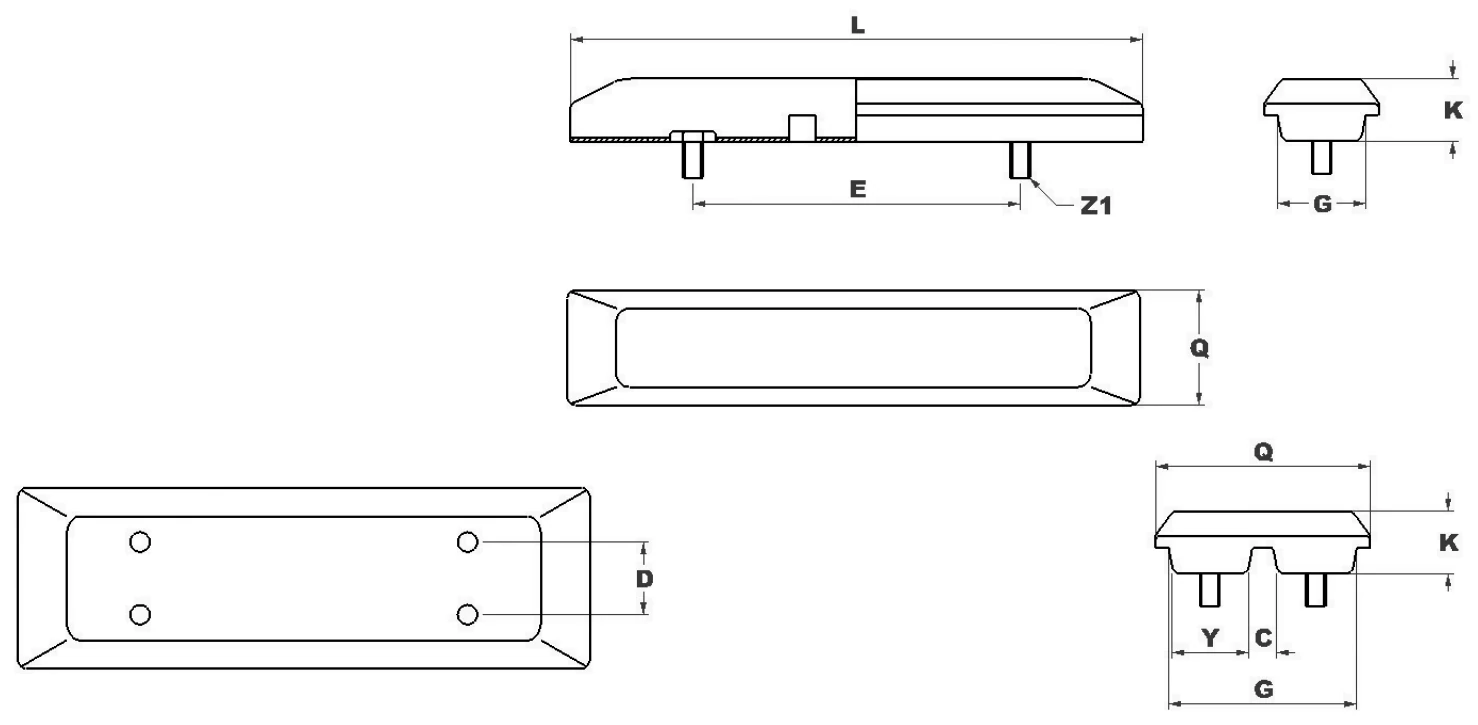

Bolt-on rubber pads — Dimension reference

Product code	Link pitch	L	E	D	Q	K	Y	C	G
VRTPB90230	90	230	150	0	70	38	0	0	54	Get a quote →
VRTPB102300	101.6	300	200	0	70	38	0	0	54	Get a quote →
VRTPB135400	135	400	300	46	106	39	46	13	90	Get a quote →
VRTPB154450A	154	450	350	58	124	41	41	16	106	Get a quote →
VRTPB154450B	154	450	350	58	125	46	41.2	17	108.7	Get a quote →
VRTPB171500A	171	500	400	60	137	56	44	20	108	Get a quote →
VRTPB171500B	171	500	400	60	135	53	42.8	21	108	Get a quote →
VRTPB171600	171	600	500	60	130	53	43.5	20	108.5	Get a quote →
VRTPB171700	171	700	600	60	132	54	41.8	22	111.3	Get a quote →
VRTPB175500	175	500	400	57	120	54	39.5	19	104	Get a quote →

All dimensions in mm

Chain-on rubber pads

Mounted directly on the track chain — the machine runs on rubber without track shoes.

Supplied with bolts and nuts

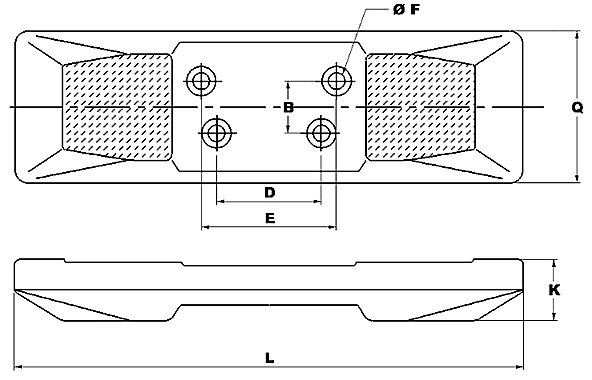

Chain-on rubber pads — Dimension reference

Product code	Link pitch	L	E	D	B	Q	K	ØF
VRTPC135400	135	400	104	80	46	125	52	13.1	Get a quote →
VRTPC140400	140	400	86	86	52	145	54	12.5	Get a quote →
VRTPC140450	140	450	86	86	52	145	54	12.5	Get a quote →
VRTPC140500	140	500	86	86	52	145	54	12.5	Get a quote →
VRTPC154450A	154	450	89	73	57	145	78	15	Get a quote →
VRTPC154600	154	600	89	73	57	146	56	14.5	Get a quote →
VRTPC154450B	154	450	90	90	55	146	56	14.5	Get a quote →
VRTPC154450C	154	450	89	73	57	146	52	14.3	Get a quote →
VRTPC156450	155.6	450	104.8	88.9	54.8	146	56	14.5	Get a quote →
VRTPC171500A	171	500	108	108	60.3	162	66	16.3	Get a quote →
VRTPC171500B	171	500	108	108	60.3	160	65	16.3	Get a quote →
VRTPC171600A	171	600	108	108	60.3	162	65	16.3	Get a quote →
VRTPC171600B	171	600	108	108	60.3	160	65	16.3	Get a quote →
VRTPC171700	171	700	108	108	60.3	162	66	16.3	Get a quote →
VRTPC175500A	175	500	102	86	57	162	69	16.3	Get a quote →
VRTPC175500B	175	500	102	86.4	57	160	65	16.5	Get a quote →
VRTPC175600	175	600	102	86	57	162	66	16.5	Get a quote →
VRTPC190500	190	500	160	124	62	178	76	20.3	Get a quote →
VRTPC190600A	190	600	155	119	69	178	72	21.3	Get a quote →
VRTPC190600B	190	600	160	124	62	178	72	20.3	Get a quote →
VRTPC190600C	190	600	160	124	62	178	70	20.5	Get a quote →

All dimensions in mm

Heavy Duty chain-on rubber pads

More wear-resistant than standard chain-on pads.

Supplied with bolts and nuts

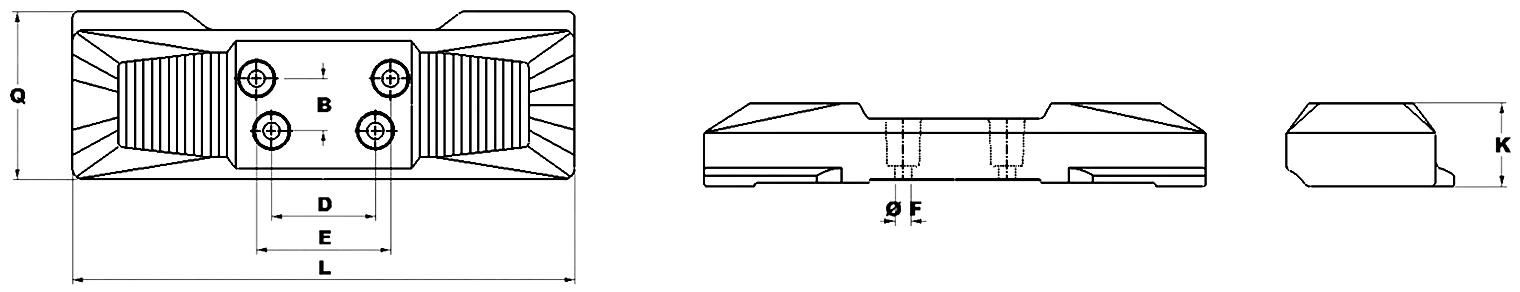

Heavy Duty chain-on rubber pads — Dimension reference

Product code	Link pitch	L	E	D	B	Q	K	ØF
VRTPH154450	154	450	89	73	57	150	74	15	Get a quote →
VRTPH171500	171	500	108	108	60.3	180	86	16.5	Get a quote →
VRTPH190600A	190	600	160	124	62	200	99	21	Get a quote →
VRTPH190600B	190	600	156	119	69	200	99	21	Get a quote →

All dimensions in mm

Clip-on rubber pads

Clamped around the fitted track shoe. Shoe profiles differ between manufacturers — measure your shoe before ordering; clip-on pads always fit VANROCK track shoes.

Clip-on rubber pads — Dimension reference

Product code	Link pitch	L	Q	G	K	R	Y	C	X
VRTPK135450A	135	450	116	81	54.5	18	31	16	9	Get a quote →
VRTPK135450B	135	450	104	81	56	20	33	18	11	Get a quote →
VRTPK140400	140	400	110	86.6	50	18	32.8	21	9.5	Get a quote →
VRTPK140450	140	450	110	86.6	50	18	32.8	21	9.5	Get a quote →
VRTPK140500	140	500	110	86.6	50	18	32.8	21	9.5	Get a quote →
VRTPK154450A	154	450	122	113	55	20	40	18	7	Get a quote →
VRTPK154600	154	600	122	113	55	20	40	18	7	Get a quote →
VRTPK154450B	154	450	125	106	50	20	41	16	6	Get a quote →
VRTPK171500A	171	500	132	124	65	21	41.8	22	6	Get a quote →
VRTPK171500B	171	500	135	110	57	20	42.5	21	8.5	Get a quote →
VRTPK171600A	171	600	132	124	65	21	41.8	22	10	Get a quote →
VRTPK171600B	171	600	135	110	57	20	42.5	21	8.5	Get a quote →
VRTPK171700A	171	700	140	116	64	20	41.8	22	11	Get a quote →
VRTPK171700B	171	700	135	107.3	57	20	43.5	20.5	8.5	Get a quote →
VRTPK175500A	175	500	126	101	68	24	38	19	10	Get a quote →
VRTPK175500B	175	500	127	103	66	25	38	19	8.5	Get a quote →
VRTPK175600	175	600	128	100	70	26	34	24	8.5	Get a quote →
VRTPK190500	190	500	138	122	70	27	48	20	11	Get a quote →
VRTPK190600A	190	600	148	114	87	26	42	23	12	Get a quote →
VRTPK190600B	190	600	138	122	70	27	48	20	11	Get a quote →
VRTPK190700	190	700	140	122	65	26	48	20	11	Get a quote →
VRTPK216600	216	600	160	114	76	36	51	26	14	Get a quote →
VRTPK216700	216	700	160	114	79	36	51	26	13	Get a quote →

All dimensions in mm

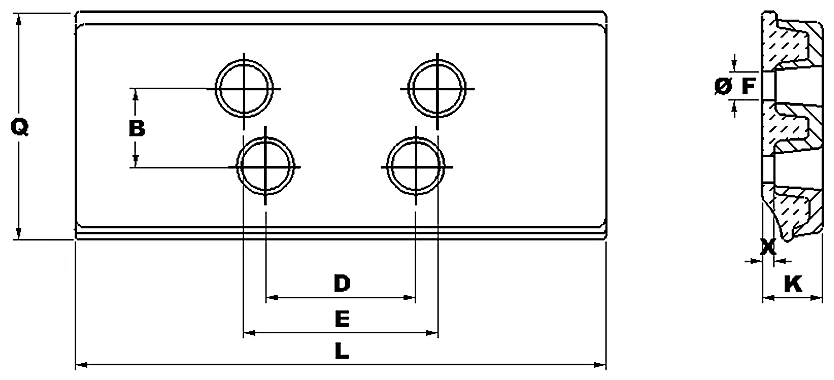

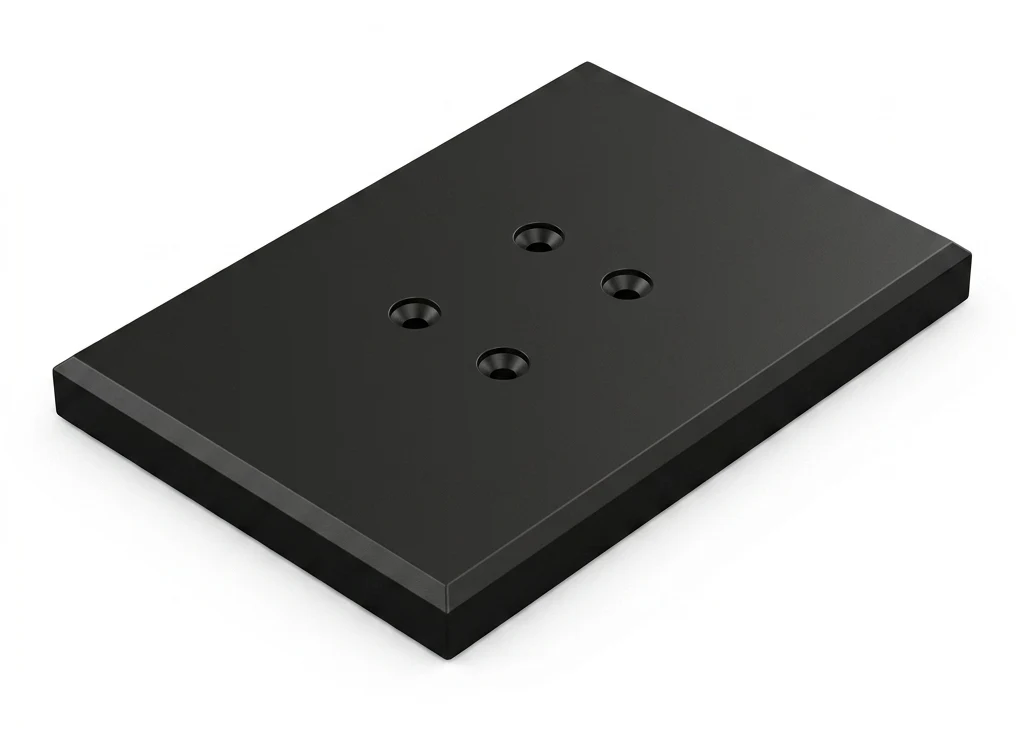

Road pads

Flat pads for road transport duty: rubber for grip, or polyurethane poured directly onto the shoe — extremely wear-resistant and resistant to oils, petrol and grease.

Product code	Link pitch	L	E	D	B	Q	K	ØF	Material
VRTPR140265	140	265	86	86	52	163	50	12.3	Polyurethane	Get a quote →
VRTPR156304	155.8	304	88.9	88.9	57.1	165	50	13	Polyurethane	Get a quote →
VRTPR156300	155.8	300	88.9	88.9	57.1	165	57	13	Rubber	Get a quote →
VRTPR171350	171	350	108	108	60.3	190	60	16.5	Polyurethane	Get a quote →

All dimensions in mm

Component_Knowledge

Technical guide

Rubber Pads

Function & construction

Rubber pads are an alternative to bare steel shoes wherever the surface must be protected — asphalt, concrete, paving and finished floors. Each pad is individually vulcanised onto a metal core: the core carries the mounting and transfers the load, the rubber body forms the contact surface.

Pads are matched to the track by the link pitch of the chain (90–216 mm in the VANROCK programme) and to the machine by pad length. The mounting system — bolt-on, chain-on, clip-on or road pad — depends on how the machine is configured and how often the pads need to come off.

Choosing the mounting system

+Bolt-on pads are screwed through additional holes in the track shoe; pre-drilled shoes are available as a complete solution — a good balance of holding force and replaceability.
+Chain-on pads mount directly on the chain and replace the shoes entirely — the standard solution when the machine works mostly on sensitive surfaces.
+HD VGRIP chain-on pads add wear volume and a front extension that keeps sand, stones and gravel out of the undercarriage.
+Clip-on pads clamp around the existing shoe without drilling — fastest to fit and remove when the machine alternates between dirt and paved surfaces.
+Road pads in rubber or polyurethane suit machines that regularly travel on paved roads; polyurethane is poured directly onto the shoe and resists oils, petrol and grease.

Fit check before ordering

+Confirm the link pitch of your chain — the pad must match it exactly.
+For clip-on pads, measure the track shoe: profiles differ slightly between shoe manufacturers, and the pad must sit correctly between the grousers.
+Check pad length (L) against your current shoe width.
+Bolt-on and chain-on pads are supplied with bolts and nuts — no separate hardware order needed.

04 · Component_Knowledge

Operating & wear

+Avoid sharp pivot turns on abrasive surfaces — they tear rubber off the core edges first.

+Remove stones and debris trapped between pads; the VGRIP extension reduces ingress but does not replace cleaning.

+Replace pads before the metal core contacts the ground: an exposed core damages exactly the surfaces the pads are meant to protect.

+Torque bolt-on and chain-on hardware to specification and re-check after the first shifts of operation.

+Uneven wear across the pad width usually points to worn chain or roller components — inspect the undercarriage, not just the pads.

Undercarriage_Knowledge

Rubber Tracks vs Steel Tracks: Which Should You Run?5 Min Read →How to Choose Track Shoes: Width, Grouser Type & Material6 Min Read →Mini Excavator Undercarriage Guide: Tracks, Rollers & Common Failures6 Min Read →

Expert guides from our engineers

FAQ

Rubber Pads — common questions

Which rubber pad type fits my machine?+

The link pitch of your track chain determines the size; the mounting system determines the type. Chain-on pads mount directly on the chain, bolt-on pads screw through drilled track shoes, and clip-on pads clamp around the existing shoe. If you are unsure, send your machine model and a photo of the track — our team confirms the correct pad.

How do I measure for clip-on rubber pads?+

Clip-on pads clamp around the track shoe, so the shoe profile must match. Shoe profiles differ slightly between manufacturers — measure the shoe width and grouser spacing before ordering. Clip-on pads always fit in combination with VANROCK track shoes.

Are bolts and nuts included with rubber pads?+

Yes — bolt-on and chain-on rubber pads (including HD VGRIP) are supplied complete with bolts and nuts. Clip-on pads clamp mechanically and need no separate hardware.

What is the difference between rubber and polyurethane road pads?+

Rubber road pads offer more grip. Polyurethane road pads are cast directly onto the track shoe — extremely wear-resistant, suitable for heavy machinery and resistant to oils, petrol and grease.
