// Forstmaschinen / TIMBERJACK / TJ608B
Kettenmutter für TIMBERJACK TJ608B Forstmaschinen
Track nut for TIMBERJACK TJ608B Forestry Machine
Store_Code
43888
VANROCK_PART_CODES
VRTD0414S17
Gewicht
0.07 Kg
Verfügbarkeit
Auf Bestellung verfügbar
Details
TypeSQ
Strength class12
AM20
Pitch1,5 mm
E21 mm
S30 mm
H38,28 mm
L—
M—
R—

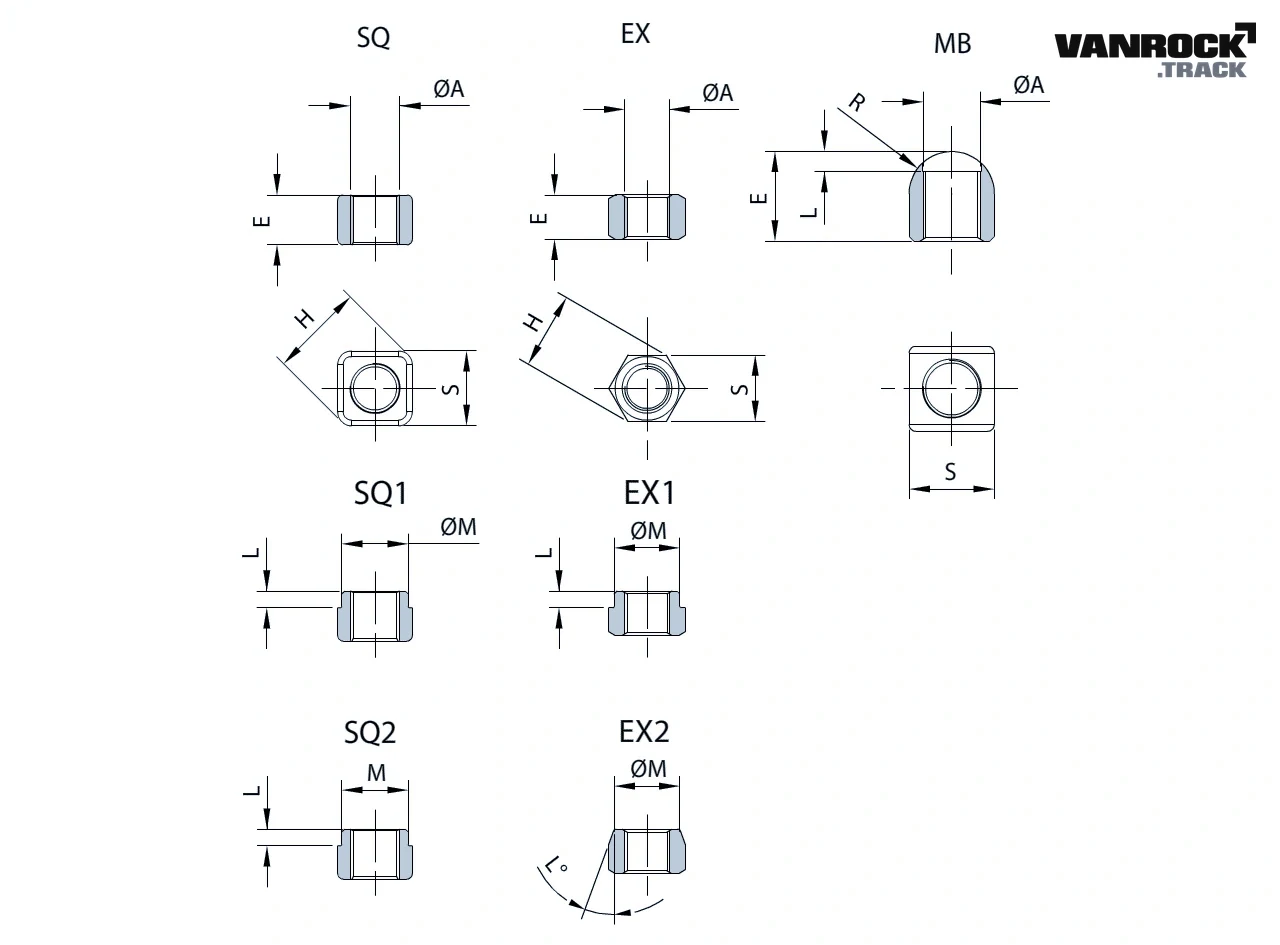

Technische_Zeichnung
Kompatibel_Mit
CATERPILLAR
315 v1315 v2315C315L v1315L v2317317BL317BLN317N318BL318BN v1318BN v2318C v2318C v3318C v4318C v1319E320 v1320 v2320 v3320 v4320 v5320B320BL320BL LN320BLL v1320BLL v2320BS320C v1320C v2320C v3320C v4320CL v1320CL v2320CL v3320D v4320D v7320D v16320D v8320D v12320D v15320D v5320D v10320D v14320D v1320D v3320D v2320D v11320D v6320D v9320D v13320DL v10320DL v8320DL v3320DL v4320DL v5320DL v7320DL v1320DL v15320DL v12320DL v16320DL v11320DL v2320DL v9320DL v13320DL v14320DL v6320L v1320L v2320L v3320L v4320L v5320N v1320N v2321C v1321C v4321C v2321C v3321C LC322322B322BL v1322BL v2322BL v3322BLN322CL322L v3322L v1322L v2322LN322N323DL v4323DL v2323DL v3323DL v1323DL v5323DLN v2323DLN v1324D324DL v2324DL v1324DL v3324DL v4324DLN v1324DLN v2E200BE240E240B v1E240B v2E240CE300BEL200BEL240 v2EL240B v1EL240B v2EL240CEL300EL300B
KOBELCO
K910K912K912LC MARK IISK150LC MARK IIISK160LC MARK IIISK170LCSK200 MARK IIISK200LC VISK210 MARK IVSK210-8SK210-9SK210LCSK210LC MARK IIISK210LC MARK IVSK210LC-6ESK210LC-8SK220LC MARK IIISK235SRSK250 MARK 8SK250LC 6ESK250LC MARK VISK250NLC MARK IVSK260 MARK 8SK300 MARK IIISK300LC MARK IISK300LC MARK IIISK330SK330LC MARK IV
Referenzen
BERCOFT2111
CATERPILLAR9W3361
CNH-FIAT NEW HOLLAND76030024
CNH-FIAT NEW HOLLAND79035816
DAEWOO2121-1250
DAEWOO9121-7005
HITACHI3060205
HITACHI4255638
HITACHI4663808
HYUNDAI81EM-20030
INGERSOLL RAND57708901
ITMD04140S0N17
KOBELCO2420P1552
KOBELCO2420Z1293
KOMATSU14X-32-11220
LIEBHERR7366658
SAMSUNG-H.I.9112-12501
TELCO-TATA9TD01532/3
TELCO-TATATD01532/3
TELCO-TATATD01723/3
VOLVO14526401
VOLVO14880574
VPIV79035816
